Features
- Customizable, all-in-one fan and fan/LED light combinations with Pick-A-Flow speed selector – one fan, you choose the CFM
- Unique Plug 'N Play modules provide up to three value-added features
- Revolutionary DC motor with SmartFlow™ technology ensures optimal CFM output
- Replaceable, GU24 base LED lamps provide warm, energy efficient illumination
- Flex-Z Fast™ bracket provides flexible, fast and easy installation
- Can be used to comply with ASHRAE 62.2, LEED, CALGreen and ENERGY STAR for Homes 3.0
- Integrated dual 4" or 6" duct adaptor (up to 110 CFM models)
- UL listed for tub/shower enclosure when used with a GFCI protected circuit
- 6 year warranty on DC motor, 5 years on LED, 3 years on parts

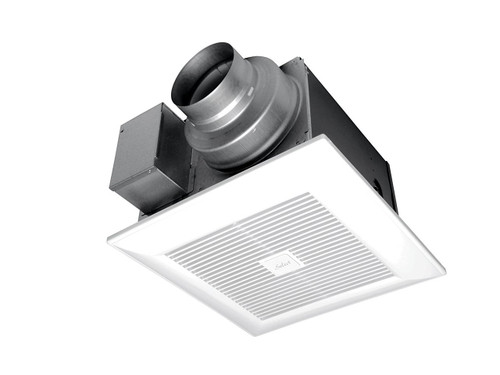

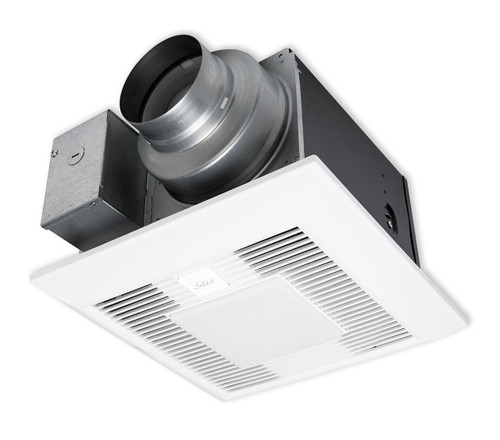

- Product Family Name WhisperGreen Select Fan/Light
- Air Volume Exhaust (CFM) 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 86 @ 0.25" SP, 110 @ 0.1" SP, 114 @ 0.25" SP
- Noise (Sones) 50 @ 0.1" SP = less than 0.3, 53 @ 0.25" SP = less than 0.3, 80 @ 0.1" SP = less than 0.3, 86 @ 0.25" SP = 0.6, 110 @ 0.1" SP = 0.4, 114 @ 0.25" SP = 0.9
- Power Consumption (Watts) 50 CFM = 4W, 80 CFM = 6.0W, 110 CFM = 11.1W,
- Energy Efficiency (CFM/Watt) 50 CFM = 12.8CFM/W, 80 CFM = 13.3CFM/W, 110 CFM = 9.9CFM/W,
- Current (Amps) 50 CFM = .04A, 80 CFM = .07A, 110 CFM = .12A,
- Power Rating (V/Hz) 120/60
- Motor Type (AC/DC) DC
- Motion Sensor Optional
- Humidity/Condensation Sensor Optional
- Multi-Speed with Time Delay Optional
- Duct Diameter 4" & 6"
- Installation Ceiling
- Radiation Damper Available Yes
- Mounting Opening (in sq.) 10-1/2"
- Grille Size (in sq.) 13"
- Light Type (CFL/LED) LED
- Lamp Watts 2 x 7W
- Color Temperature (Kelvin) and Color Rendering Index (CRI) 3000K / >80 CRI
- Lumens (lm) 550lm Per Lamp
- Lamp Rated Average Life (hrs.) 40000
- Lamp Model # LPHT7
- Night Light Optional
- ENERGY STAR® Certified YES
- Other Approved Codes and Standards ASHRAE 62.2, LEED, CALGreen, California Title 24, Washington VIAQ
- UL Listed for Tub/Shower Enclosure when used with a GFCI Protected Circuit Yes
- Warranty 6 Year DC Motor, 5 Year LED, 3 Year Parts
- Master Carton Dimensions (HxWxD) 16-4/5" x 14-1/4" x 12
- Master Carton Gross Weight (lbs.) 14.6
